DCN - NCS1856-U / NCS1856-N

DCN - Data Storage

Dual controller unified storage, support FC/iSCSI/CIFS/NFS protocol; Support RAID0,RAID1,RAID10,RAID P1(RAID5),RA1D P2(RAID6),RAID P3, support dedicated and global hot standby disk; 4* 64 bits multi-core processor, memory default with 64GB/ maximum 512GB; 2*400GB SSD ,4*1Gbinterface, Configuration Thin provisioning, snapshot, Clone, automated data tiering, performance analysis and other functions; 4U 24 disk slot(available for 2.5"/3.5" disks), comply with SBB standard;

DCN- Yunke China Information Technology Limited

Yunke China Information Technology Limited, as subsidiary of Digital China (Parent company) Group (Stock code: SZ000034), is a leading data communications equipment and solution provider. Deriving from Lenovo, DCN was launched into the network market in 1997 with company philosophy of “Client-oriented, Technology-driven and Service-preference”.

DCN focuses on data communication field with full product lines, including Switch, Wireless, Router, Security firewall and multi-core edge, storage and Cloud services. With continues invest on R&D, DCN is the leading IPv6 solution provider, the first Chinese company won IPv6 Ready Gold certificate and first manufacturer won OpenFlow v1.3 Certificate.

DCN provides product and solution to 60+ countries worldwide, and have established represent and service center at CIS, Europe, Asia, North America, South America and Middle East regions. DCN serves clients successfully from Education, Government, Operators, ISP, Hospitality, and SMB.

Based on independent development and sustainable innovation, DCN is continuous to provide network solution with intelligent, reliable and integrated network products and quality service for the clients.

Download DCN Network Profile
Key Features and Highlights

NCS1856 Series - Key Features

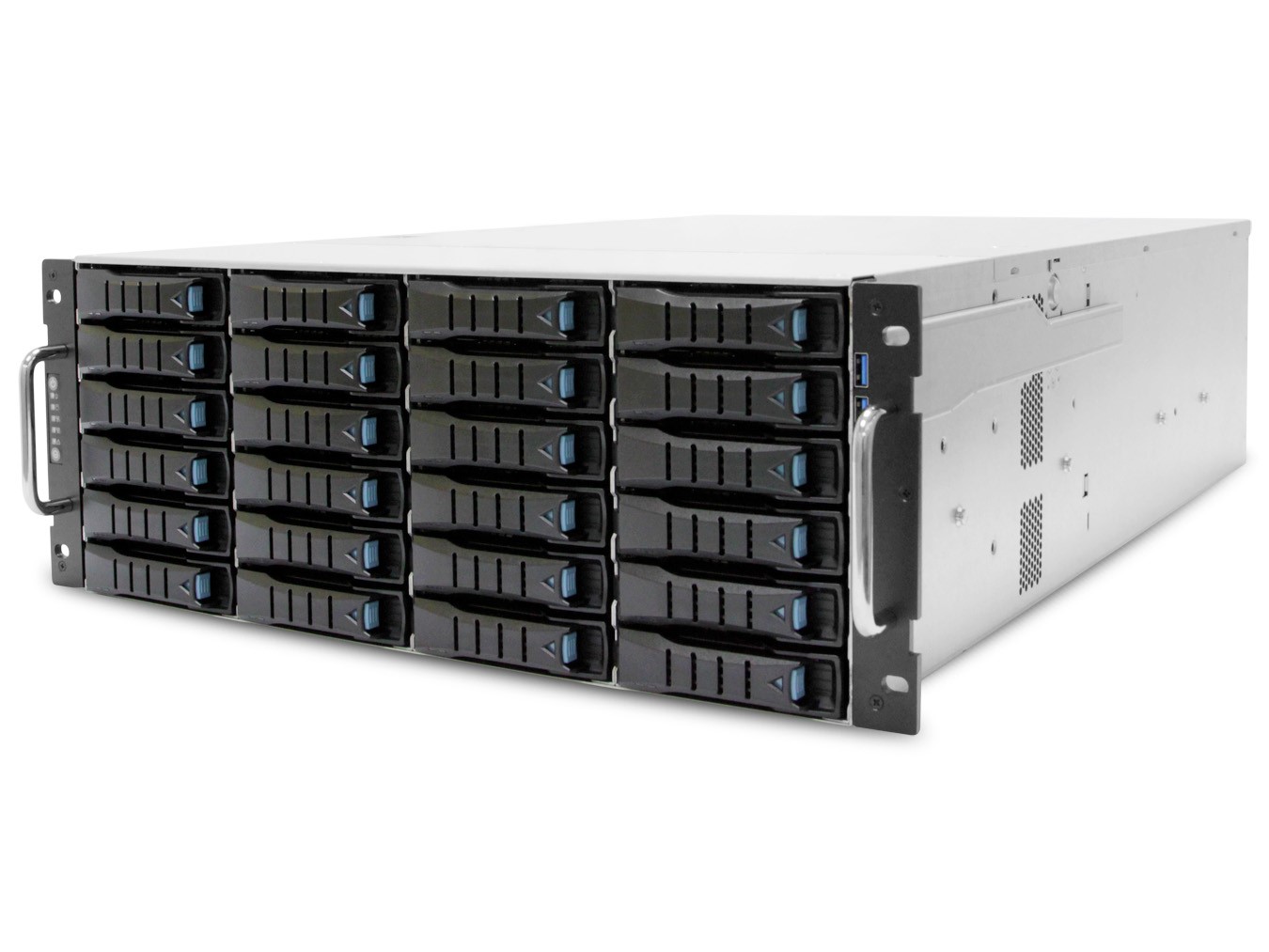

Expertise Wave img Placholder
Leading hardware architecture
The NCS1850 series storage system adopts dual redundant design and A/A working mode (Active-Active Mode), effectively guaranteeing business continuity and enhancing the core competitiveness of enterprises.
Abundant I/O interfaces
Each controller has 2 iSCSI host interfaces, 1 Gigabit Ethernet management network port (shared with IPMI), and 1 Console interface (RJ45 mode, compatible with CISCO standard). It can optionally expand 10Gb iSCSI, or 16Gb FC/8Gb FC back-end disk expansion interface.
Highly reliable Raid technology with multiple verification
Adopt innovative RAID PX technology to provide triple data check technology. When three disks in the same RAID group are damaged at the same time, data is not lost, and the disks are automatically load balanced. When disks in the storage system fails, all normal disks in the disk domain participate in data reconstruction, and only service data is reconstructed. The data reconstruction speed is 20 times faster than that of traditional RAID, which greatly reduces the failure probability of multiple disks.
Innovative architecture to help accelerate enterprise applications
The storage virtualization heterogeneous platform, through the built-in heterogeneous virtualization function of the system, efficiently takes over the storage arrays of other mainstream manufacturers, and integrates them into a unified resource pool to realize the unified and flexible allocation of resources and effectively protect the original investment of users.
The free flow of data between the entire series of devices does not require the help of third-party systems. Through the built-in data mirroring function of the system, the data backup and disaster recovery requirements can be flexibly realized, and the data security can be effectively guaranteed.
The SMB3.0 native protocol of the kernel improves the Windows file access performance to 149% and comprehensively speeds up the transaction processing process.
Easy to manage, comprehensive control of equipment operation status
The NCS1850 series storage management platform can manage multiple models of products in a unified manner, and provides powerful functions such as global topology display, capacity analysis, performance analysis, fault location, and end-to-end business visualization.
Comprehensive and concise GUI management interface and flexible management mode are convenient for customers' daily maintenance and storage expansion.
Provides a variety of fault warning methods, including automatic email warning, SNMP, online fault diagnosis, etc., to facilitate enterprises to control the operating status of equipment in real time.
Specifications

NCS1856 Hardware & Software Specifications

Hardware Specifications
Item NCS1856
Controllers 2 controllers
Form Factor 4U
Maximum Disks 480
Memory default/max 64GB / 512GB
Maximum front-end host Interfaces 20
Standard gigabit host Ports 4
Maximum I/O Modules (2 controllers) 8
Port Type 1Gbps/10Gbps/25Gbps/100GbpsEthernet, 8Gbps/16Gbps FC
Disk Expansion cabinet 4U expansion enclosure (4U; 24 drives, 2.5" LFF/3.5" LFF)
Software Specifications
System Platform NCS1850 v2.0
File System Transactional file system, no single volume capacity limit, online dynamic scaling volume size, user and directory-level quota management
RAID RAID0, RAID1, RAID10, RAID P1(RAID5), RAID P2(RAID6), RAID P3
Storage Protocols FCP, IB, FCoE, iSCSI, NFS, CIFS/SMB, HTTP, FTP
High Availability Features Active-Active controller with controller fault tolerance and multipath HA storage
Access Control ADS, NIS
Network Protocol NTP, Telnet, SSH, SMTP, 802.3AD, LACP
System Monitoring Online system log, system fault diagnosis, Email fault alarm, SNMP v2/v3 protocol
Management Interface B/S graphical operation interface, command line (CLI)
Data Management Flexible Volumes, Deduplication, Compression, Volume Cloning
Data Protection Data snapshot, one-click snapshot recovery
Licensed Software Remote Data Mirroring, Intelligent Tiering, Storage Virtualization
Maximum LUNs 1024
SAN Hosts Supports up to 1024 hosts
Compatible OSs Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux®, Oracle Solaris, AIX, HP-UX, Mac® OS, VMware® ESXi, Citrix® XenServer
Environment Specifications
Rated Power 800W
Height 7 inches (17.9 cm), fits in 4U space
Width 19" rack mount
Operating Humidity, altitude and relative Humidity 10°C to 40°C (50°F to 104°F); altitude lower than 3,000 m (10,000 ft); 20% to 80% relative humidity, non-condensing
Storage Temperature and relative Humidity -40°C to 70°C (-40°F to 158°F); typically lower than 12,192 m (40,000 ft) in unconditioned aircraft cargo hold, 8% to 80% relative humidity, non-condensing (in original in packaging)
Order Information

NCS1850 Series - Order Information

Model Description
NCS1850 Series
NCS1856-N Dual controller unified storage, support FC/iSCSI/CIFS/NFS protocol;
Support RAID0,RAID1,RAID10,RAID P1(RAID5),RAID P2(RAID6),RAID P3, support dedicated and global hot standby disk;
4* 64 bits multi-core processor, memory default with 64GB/ maximum 512GB;
4*1Gb interface, Configuration Thin provisioning, snapshot, Clone, automated data tiering, performance analysis and other functions;
4U 24 disk slot(available for 2.5"/3.5" disks), comply with SBB standard;
NCS1856-U Dual controller unified storage, support FC/iSCSI/CIFS/NFS protocol;
Support RAID0,RAID1,RAID10,RAID P1(RAID5),RAID P2(RAID6),RAID P3, support dedicated and global hot standby disk;
4* 64 bits multi-core processor, memory default with 64GB/ maximum 512GB;
2*400GB SSD, 4*1Gb interface, Configuration Thin provisioning, snapshot, Clone, automated data tiering, performance analysis and other functions;
4U 24 disk slot(available for 2.5"/3.5" disks), comply with SBB standard;
NCS1850 Disk
D2-960G 12G/s SAS SSD 960GB
D2-1.92T 12G/s SAS SSD 1.92TB
D2-3.84T 12G/s SAS SSD 3.84TB
D2-1200G 12Gb/s SAS - 1200GB
D2-1800G 12Gb/s SAS - 1800GB
D2-2400G 12Gb/s SAS - 2400GB
D2-4T 12Gb/s SAS - 4TB
D2-6T 12Gb/s SAS - 6TB
D2-8T 12Gb/s SAS - 8TB
D2-10T 12Gb/s SAS - 10TB
D2-12T 12Gb/s SAS - 12TB
D2-14T 12Gb/s SAS - 14TB
D2-16T 12Gb/s SAS - 16TB
D2-18T 12Gb/s SAS - 18TB
NCS1850 Optional accessories
Cabinet sliding rail Cabinet sliding rail
SFP+ transceiver 10G SFP+ multimode transceiver
ED4224 4U 24 disk slots of expansion cabinet; 6*12Gb SAS expansion ports;
E2-10G-F2P 2 pcs of "2-port 10Gb Ethernet module (Fiber ports, include SFP transceiver)"
E2-10G-E2P 2 pcs of "2-port 10Gb Ethernet module" (Copper ports)
E2-1G-2P 2 pcs of "2-port 1Gb Ethernet module" (Copper ports)
E2-1G-4P 2 pcs of "4-port 1Gb Ethernet module" (Copper ports)
F2-25G-2P 2 pcs of "2-port 25G Ethernet module" (Fiber ports, include SFP transceiver)
F2-16G-2P 2 pcs of "2-port 16Gb Fiber Channel HBA module, PCIe" (include SFP transceiver)
F2-8G-2P 2 pcs of "2-port 8Gb Fiber Channel HBA module, PCIe" (include SFP transceiver)
F2-8G-4P 2 pcs of "4-port 16Gb Fiber Channel HBA module, PCIe" (include SFP transceiver)
MEM2-32 2 pcs of "32GB Expanded memory"
MEM2-16 2 pcs of "16GB Expanded memory"
